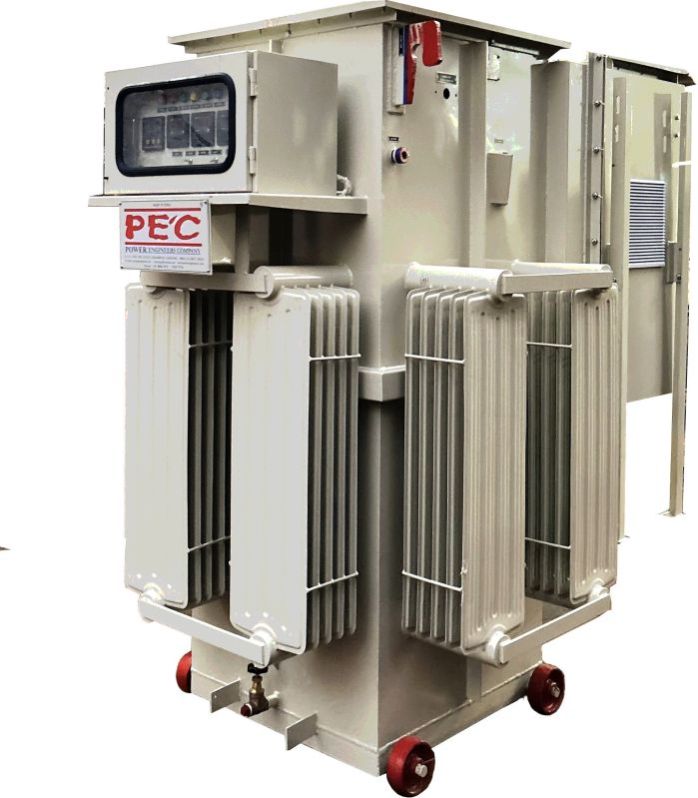

Differential copper strip wound On Load Linear type Voltage Regulator

PEC is an iso 9001:2015, NSIC-CRISIL, Dun Bradstreet (862376458), IEC, FGI, DIC, EEPC & EXIM registered company. PEC’s Automatic Voltage Controllers/ Rectifiers have a robust design and give trouble-free service. we provide you the finest products designed and engineered by people & professionals who have experience and expertise in each sphere of activity right from testing, quality control, manufacturing & designing of these products for the last 35 years. we have with us the state-of-the-art infrastructure with excellent and advanced capabilities to manufacture world-class automatic voltage controllers with quality standards.   TECHNOLOGY: Voltage Regulator is the essential and main functional part of AVC equipment. our voltage regulators are liner-type regulators with rolling contact carbon rollers. we use heavy-duty carbon rollers which do not need any replacement for at least 20-25 years.   COMMITMENT: we have a commitment to provide a FIVE-YEAR GUARANTEE for all the equipment supplied by us. After-sales service is the backbone of our organisation.   We have developed and installed industrial Automatic Voltage Controller throughout India which are suitable for 100% continuous duty cycle supplied up to 5000 kva which have more than 99.5% efficiency.   ADVANTAGES OF INSTALLING AVC : Customer will certainly have the following advantages in case they are getting higher input voltage i.e. more than 230 volts single phase/400 volts three phase.   • Reduction in breakdown of electrical equipment • Energy saving 5-10 % on motor load and 15-25% on lighting load. • Reduction in mdi by 10-15%. • Improvement in power factor. • Depreciation allowance @80% as per income tax act. • Uniform quality of end products.   Automatic Voltage Controller primarily consists of the following   1.       Linear, Plus / Minus Type Vertical Rolling Contact Voltage Regulator   In our voltage regulator, we are using heavy section of electrolytic grade rectangular copper strip instead of copper wire to minimize the losses & increase the efficiency of equipment. We are also using self lubricating carbon roller assemblies instead of ordinary carbon brushes which offer more reliability and trouble free performance of the equipment.   2.     Double wound buck / boost type series transformer   In our buck / boost transformer we are using crgo lamination to minimize iron losses. Coils of buck / boost transformer are wound with heavy section of multi strips electrolytic copper to minimize copper losses for getting better efficiency of the equipment.   3. Electronic Control Circuit and Meter Panel   Automatic Voltage Controller consists of very simple electronic control voltage circuit for monitoring and controlling voltage, repair & maintenance of which is very easy. The regulator and buck / boost transformer are oil cooled, housed in same or separate sheet steel tanks. Radiators are provided for effective cooling. The coils of the voltage regulator & buck/boost transformers are vacuum-impregnated and oven dried as per IS.   SPECIAL FEATURES   Special Features of PEC Make Automatic Voltage Controller:    EFFICIENCY   The efficiency of PEC make Automatic Voltage Controller is more than 98-99% in comparison to 93-97% of conventional make available in the market depending upon the input voltage range. Thus, a 500 kva conventional type stabilizer or conventional servo voltage stabilizers will consume additional power itself minimum rs. 80,000 p.a. (even when running at 60% load and 20 hours a day) on account of its lower efficiency by 2%.

Key Features:

1.            FIVE-YEAR GUARANTEE.

2.            NO MAINTENANCE CHARGES UPTO 5 YEARS

3.            Differential Copper Strip Wound On Load Linear Type Regulator.

4.            Low loss Voltage Stabilizer

5.            Efficiency of our AVC with Input Voltage range 360-480 V will be MORE THAN 99.5%.

6.            Transformer Oil: We use Power Oil To-HFLL Fire Resistant Trf. Oil with High Flash and Fire point
